POWER TRANSDUCER Power Transducer MS4400 Series【7】

Low-cost, Space-saving Front Terminal Connection Type Power Transducers

Series model lists

Sort

Advanced Search Compare the Products checked

Check All

Power Transducer：Power Transducers：CT Transducers: MS4400 SeriesMS4420

Front Terminal Connection Type

AC Current Transducer

Calculates the rms values of AC current signals from a CT and converts them into commonly used DC signals.

25,000Yen

7Days

1Years

Input

0 to 5A AC, 0 to 1A AC, and others

Output 1

4 to 20mA, 0 to 1mA, 1 to 5V, 0 to 5V, 0 to 10V, and others

Response Time

500ms max.

Power Transducer：Sensor Signal Conditioners：PT Transmitters: MS4400 SeriesMS4421

Front Terminal Connection Type

AC Voltage Transducer

Calculates the rms values of AC current signals from a PT and converts them into commonly used DC signals.

25,000Yen

7Days

1Years

Input

0 to 150V AC, 0 to 300V AC, and others

Output 1

4 to 20mA, 0 to 1mA, 1 to 5V, 0 to 5V, 0 to 10V, and others

Response Time

500ms max.

Power Transducer：Power Transducers：Power Transducers: MS4400 SeriesMS4431

Front Terminal Connection Type

Power Transducer

Accepts the power consumption of power equipment via current and potential transformers and converts it into commonly used DC signals.

50,000Yen / 67,000Yen

7Days

1Years

Input

110V AC 5A / 1A, 220V AC 5A / 1A, and others

Output 1

4 to 20mA, 0 to 1mA, 1 to 5V, 0 to 10V, 4 to 12 to 20mA, -1 to 0 to +1mA, 1 to 3 to 5V, -10 to 0 to +10V, and others

Response Time

500ms max.

Power Transducer：Power Transducers：Reactive Power Transducers: MS4400 SeriesMS4432

Front Terminal Connection Type

Reactive Power Transducer

Measures the reactive power of power equipment from AC signals input via current and potential transformers and converts it into commonly used DC signals.

54,000Yen / 71,000Yen

7Days

1Years

Input

10V AC 5A / 1A, 220V AC 5A / 1A, and others

Output 1

4 to 20mA, 0 to 1mA, 1 to 5V, 0 to 10V, 4 to 12 to 20mA, -1 to 0 to +1mA, 1 to 3 to 5V, -10 to 0 to +10V, and others

Response Time

500ms max.

Power Transducer：Power Transducers：Power Factor Transducer: MS4400 SeriesMS4434

Front Terminal Connection Type

Power Factor Transducer

Measures the power factor of load from AC signals input via current and potential transformers and converts it into commonly used DC signals.

65,000Yen / 95,000Yen

7Days

1Years

Input

110V AC 5A / 1A, 220V AC 5A / 1A

Output 1

4 to 20mA, -1 to 1mA, 1 to 5V, -5 to 5V, -10 to +10V, and others

Response Time

1sec max.

Power Transducer：Power Transducers：Frequency Transducers: MS4400 SeriesMS4435

Front Terminal Connection Type

Frequency Transducer

Accepts power frequency via a potential transformer and converts it into commonly used DC signals.

34,000Yen

7Days

1Years

Input

45 to 54Hz, 45 to 55Hz, 55 to 65Hz

Output 1

4 to 20mA, 0 to 1mA, 1 to 5V, 0 to 5V, 0 to 10, and others

Response Time

1sec max.

Power Transducer：Power Transducers：Phase Angle Transducer: MS4400 SeriesMS4441

Front Terminal Connection Type

Phase Angle Transducer

Measures phase angle from AC signals input via current and potential transformers and converts it into commonly used DC signals.

50,000Yen / 65,000Yen

7Days

1Years

Input

110V AC 5A / 1A, 220V AC 5A / 1A

Output 1

4 to 20mA, -1 to 1mA, 1 to 5V, -5 to 5V, -10 to +10V, and others

Response Time

1sec max.

The MS4400 Series is a line of power transducers, featuring low cost, space saving and front terminal connection.

Low-cost, space-saving power transducers, employing M4 screws
Isolated single output (3-way isolation)
Multiple power input from 85 to 264V AC / 85 to 143V DC
Suitable for conversion of a variety of AC input signals, such as AC current, AC voltage, effective power, reactive power, phase angle, and frequency into standard DC process signals.
A total of 7 models

*1 Products are warranted for years from the date of shipment.

Warranty Period *1	1Years
Standard Lead Time	7DaysCustom Products
Power Supply	Rating: 100 to 240V AC
Connection	Wall or DIN rail mounting

Σ-Δ operation employed in the current/voltage conversion circuit

The MS4400 Series power transducers can accurately measure waveforms, even when distorted due to various factors, or inverter current using Σ-Δ operation.

Low cost, space saving, and light weight

The AC current/voltage transducer is compact, measuring 25 (W) × 10 (H) × 128 (D) mm, and easy to install. The unit is light, weighing approx. 200 g, and can be mounted on a wall or DIN rail. It also has low power consumption, providing measurement input up to 0.3 VA and power input up to 2 VA. This helps to reduce the total cost and environmental load at the same time.

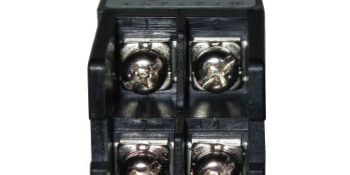

M4 screws terminals employed as I/O and power terminals

For safety reasons, rugged M4 screw terminals are employed as I/O and power terminals.

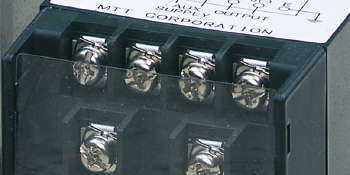

I/O and power terminal covers provided as standard

For safety reasons, the module is provided with I/O and power terminal covers as standard.

Module Specifications

Construction	Box construction with front terminals (with terminal block cover)
Connection	M4 screw terminal connection
Housing material	Flame-retardant black resin

Installation Specifications

Operating Temperature Range	-10 to 55℃
Operating Humidity Range	40 to 85％ RH (non-condensing)
Storage Temperature Range	-40 to 70℃
Installation	Wall or DIN rail mounting
Weight	Approx. 200g (MS4420, MS4421) Approx. 300g (MS4431, MS4432, MS4434, MS4435, MS4441)

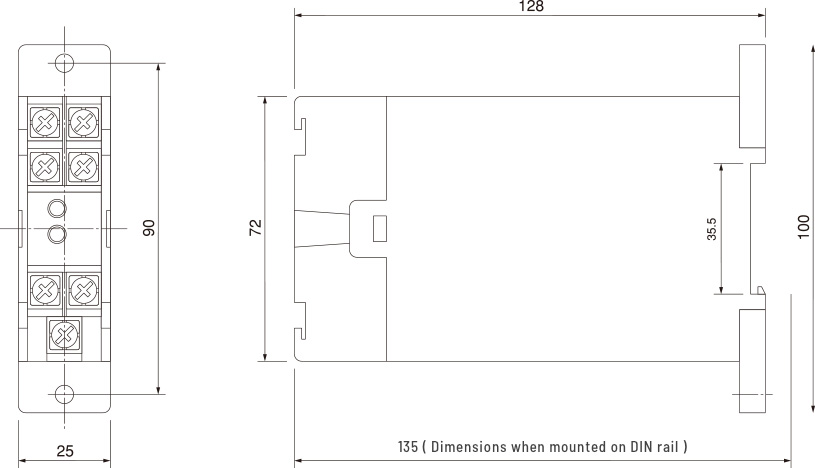

Dimensional Drawings
